My workshop and some of the tooling I have made. Hover over an image for more information.

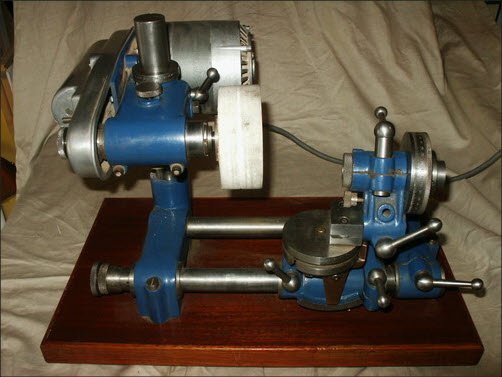

Quorn A Quorn tool and cutter grinder. Made from castings supplied by Model Engineering Services. Universal Pillar Tool

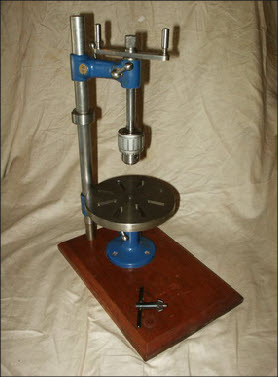

Universal Pillar tool for taping, staking etc. I also made a holder so I could use it as a precision drill with my Dremel. Made from castings supplied by Hemingway Kits.

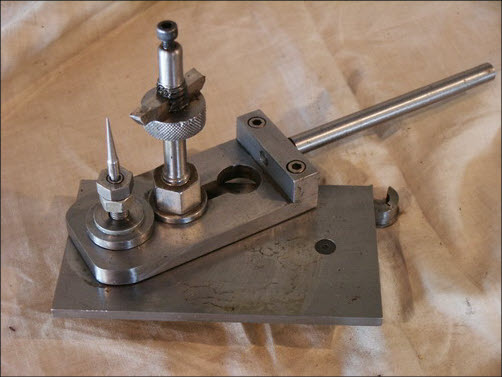

My own design for turning ball handles. The base is fitted on the lathe cross slide. Boring Head

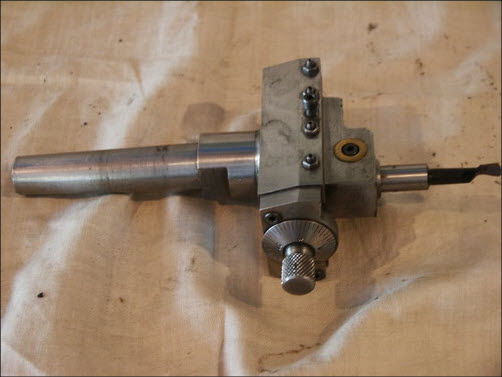

High speed boring head. Made from kit supplied by Hemingway Kits.

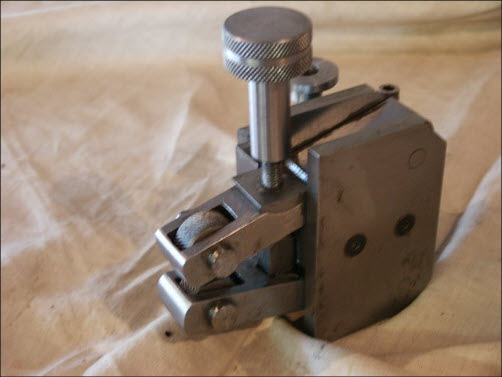

My own design which allows different styles of knurls to be used. Dividing Head

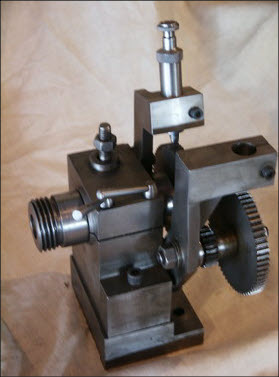

A Dividing head, which uses Myford gear change wheels. Made from castings supplied by Model Engineering Services.

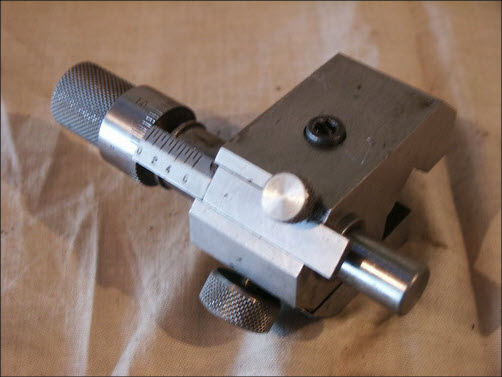

My own version of a Micrometer stop to fit the bed of my Boxford lathe. My Workshop

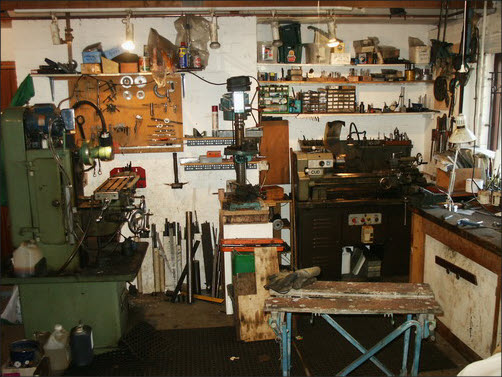

A view of my Workshop, occupying a large part of the garage, showing my Boxford lathe, Tom Senior mill, benches etc.

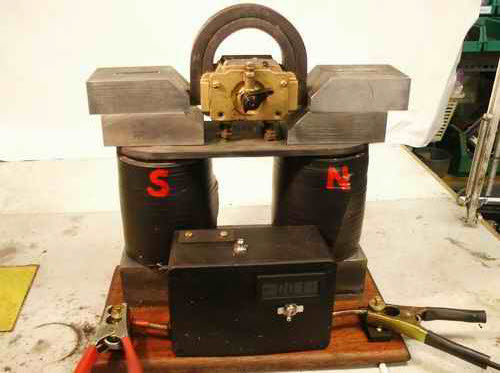

Magnet charger, using 8 kg of 10 AWG magnet wire. Draws 50 amps for 28,000 amp turns. Capable of re-charging most magnetos.
